Rheo3000

The RST Rheometer can be programmed using Rheo3000 to control shear stress or shear rate

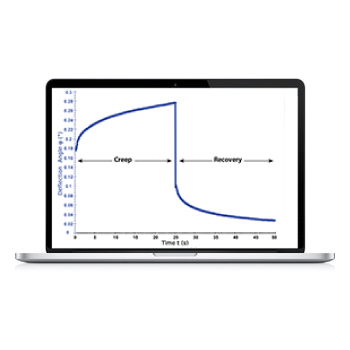

Creep Rheo3000 201x583

The RST Rheometer can be programmed using Rheo3000 to control shear stress or shear rate.  Data is saved in a SQL database for easy access by multiple users on a network. Multiple test programs can be used for complete characterization of material flow behavior: viscoelastic modulus, yield stress, viscosity flow curve, creep behavior and recovery.

FEATURES & BENEFITS

  • Program by controlled stress or rate
  • User-friendly design and interface
  • Automate viscosity vs. temperature testing
  • Store data fast and safe in a SQL database
  • User management & Audit trail to support 21 CFR requirement
  • Quality control limits for pass/fail test
  • Data In- and Export (txt, csv, xml ...)
  • Automate analysis of data collected
  • Calculate yield and average viscosity
  • Create flow curves and plot yield stress
  • 8 supported languages (live changeable)



COMPUTER REQUIREMENTS

  • Windows 7, Windows 8, Windows 10
  • 2 GHz processor
  • 2 GB RAM
  • One USB port; If using a temperature controller, an RS-232 port is also required
  • 1280x800 resolution display with 128 MB of graphics memory
