RSO Rheometer

Precise Rheological Analysis for Various Materials

Effortless and Accurate Rheology Measurements for QC and R&D Applications

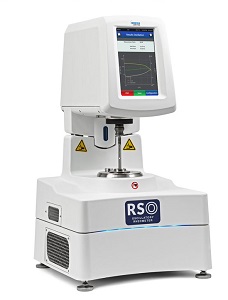

RSO Oscillatory Rheometer is designed for rapid, accurate rheological testing with a user-friendly interface that meets the needs of both Quality Control (QC) and Research & Development (R&D) environments. Using oscillatory measurements through the use of a low friction air bearing allows for very precise viscoelastic measurements. Its flexibility allows for both cone/plate and concentric cylinder geometries in a single instrument, making it an ideal choice for a wide range of material testing applications.

Controlled Shear Stress/Shear Rate Operation:
Precision air bearing and oscillatory measurements allow the study of static yield, flow curves, and visco-elastic behavior with precise control over shear stress and shear rate.
User-Friendly Touch Screen:
Stand-alone operation is simplified with an intuitive touch screen and graphical display, making it easy to navigate and manage tests.
Quick Connect Coupling System:
Effortlessly attach spindles with the quick connect coupling system, reducing setup time.
Instrument Flexibility:
Versatile design allows for both cone/plate and concentric cylinder configurations in a single instrument, providing adaptability for various testing needs.
Small Sample Size:
Test with very small sample volumes, enabling rapid setup and easy cleanup, ideal for labs with limited sample availability.
Spindle Barcode Recognition:
Automatic spindle recognition through barcode scanning streamlines the testing process and ensures accurate data entry.
Standalone Simplicity:
Perfect for QC users, the instrument offers straightforward, standalone operation without the need for a PC.
Automatic Gap Setting:
Quickly and easily set the gap between the spindle and plate with the automatic gap setting feature, enhancing accuracy and reducing setup time
Rapid Temperature Control:
Achieve quick profiling of viscosity versus temperature with the Peltier option, offering rapid and precise temperature control.
Optional Rheo3000 Software:
Enhance your testing capabilities with optional Rheo3000 software, allowing for PC control, data acquisition, and analysis of multiple test files.

RSO Rheometer with Peltier Temperature Control:
The instrument comes equipped with advanced temperature control for precise thermal management during tests.
Convenience Package:
Includes a cleaning cloth and screen protector to keep the instrument in optimal condition.
Air Filtration System:
An air filtration system is included with all orders unless specifically removed, ensuring a clean testing environment.

Choice of Cone or Plate Spindle Geometries:
Select the spindle geometry that best suits your testing needs (at least one is required).
Rheo3000 Software:
Optional software for advanced PC control, data acquisition, and in-depth analysis of multiple test files.
Viscosity Standards:
Ensure accurate and reliable measurements with certified viscosity standards.
Teflon Thermal Barrier:
Protect your samples from external temperature fluctuations with a Teflon thermal barrier, ensuring consistent results.
Coaxial Cylinder:
Expand your testing options with a coaxial cylinder configuration for additional sample types.
Bob (Spindle) and Chamber:
Essential for testing with concentric cylinder geometry, offering flexibility in sample handling.
FTKY3 Water Jacket for Temperature Control:
Keep precise temperature control during testing with the FTKY3 water jacket.
Temperature Bath:
Achieve consistent and controlled temperature conditions for your samples with a temperature bath.

Minimum Torque: 5 µNm
Maximum Torque: 100 mNm
Torque Resolution: 0.02 µNm
Bearing: Air bearing
Deformation Resolution: 1.25 µrad
Minimum Speed: 0.001 rpm
Maximum Speed: 1500 rpm
Minimum Frequency: 0.01 Hz / 0.06 rad/s
Maximum Frequency: 20 Hz / 126 rad/s
Measurement System: Cylinder/Cone Plate
Temperature Control: Peltier or bath option
Minimum Temperature: 0°C
Maximum Temperature: 180°C
Dimensions (W x H x D): 360 x 600 x 340 mm
Weight: 31 kg

WHY CHOOSE THE RSO RHEOMETER?

The RSO Rheometer combines versatility, ease of use, and advanced testing capabilities in a single, robust instrument. Whether you're conducting basic QC tests or performing complex R&D analyses, the RSO Rheometer provides the flexibility and precision needed to achieve reliable, repeatable results.
