STANDARD VERSION FEATURES
Digital Leveling:
- Ensures precise instrument setup for accurate measurements.
Start-up Wizard:
- Simplifies the initial setup process with guided instructions.
Gel-Timer Functionality:
- Measure gelation time with ease for various applications.
Optional Magnetic Coupling Attachment:
- Upgrade to a magnetic coupling that replaces the EZ-lock for enhanced spindle security.
Optional Bar Code Scanner:
- Streamline data entry and sample tracking with a convenient barcode scanner.
17025 Calibration (Optional)
- Achieve compliance with ISO 17025 standards for calibration accuracy.
High Accuracy and Repeatability
-
Achieve accurate results with :
- ±1.0% of range accuracy
- ±0.2% repeatability
- Ensuring reliable performance.
COMPLIANT VERSION FEATURES
- Hand-held Scanner for Bar Code Detection:
Easily capture and input data with a hand-held barcode scanner.
- Accessory Detection with Bar Code:
Automatically identify and configure accessories using barcode detection for seamless operation.

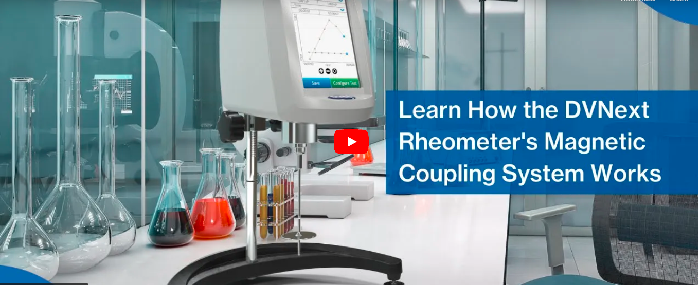

- Magnetic Coupling Attachment:
Upgrade to a magnetic coupling that replaces the EZ-Lock for enhanced spindle security and ease of use.
- Compliance with 21CFR Part 11 and GAMP:
Ensure regulatory compliance in both stand-alone and GAMP-compliant environments.
- Ethernet Connectivity:
Enable network integration and remote monitoring with Ethernet connectivity.
- LIMS Connectivity:
Seamlessly connect to Laboratory Information Management Systems (LIMS) for efficient data management.
- Printing to Non-editable PDF:
Generate secure, non-editable PDF reports directly from the device, ensuring data integrity.
- DVNXLV Model:
- Viscosity Range: 1 cP* to 6M cP (mPa·s)
- Speed Range: 0.1 - 250 RPM
- Speed Increments: 2.6K
- DVNXRV Model:
- Viscosity Range: 100 cP++ to 40M cP (mPa·s)
- Speed Range: 0.1 - 250 RPM
- Speed Increments: 2.6K
- DVNXHA Model:
- Viscosity Range: 200 cP to 80M cP (mPa·s)
- Speed Range: 0.1 - 250 RPM
- Speed Increments: 2.6K
- DVNXHB Model:
- Viscosity Range: 800 cP to 320M cP (mPa·s)
- Speed Range: 0.1 - 250 RPM
- Speed Increments: 2.6K
- Cone Plate Version:
Choose the cone plate version for precise viscosity measurements in small sample volumes.
- Ball Bearing:
Opt for ball bearing support for enhanced stability and accuracy in high-torque applications.
- Quick Action Stand:
Select the quick action stand for fast and convenient instrument setup and adjustments.
*Not applicable to HA or HB models
- Instrument: DVNext Rheometer
- Spindles: 6 RV/HA/HB spindles or 4 LV spindles
- RTD Temperature Probe: For precise temperature measurement
- Spindle Guard Leg*: Stabilizes the spindle during viscosity assessments
- Lab Stand: Model G Base for stable testing
- Screen Protector: Protects the touchscreen from wear
- Carrying Case: For easy transport and protection of the instrument
